Thomas & Betts 330-P

Marrette® XTP® 330-P High Quality Twist-On Wire Connector, Non-Winged Shell, Live Action Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene
Wire Connectors and Wire Nuts
7467376 330-P
Thomas & Betts
$0.00 / ea

  • Color: Blue
  • Finish: Matte
  • Material: Polypropylene
  • Shell Style: Non-Winged
  • Spring Type: Live Action
  • Temperature Rating: 105
  • Type: High Quality
  • Voltage Rating: 300
  • Wire size: 22 to 14
  • Wire Type: Solid/Stranded Copper
Marrette® XTP® Twist-On Wire Connector, High Quality, Non-Winged Shell Style, Live Action Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 300 VAC, 105 deg C, Polypropylene, Blue, Matte
  • Features
  • Wire connector to offer a non-winged, variable-volume live-action spring in the connector
  • Deep, wide throat ensures full insulation coverage
  • Threaded entry helps guide large wire bundles into the spring chamber

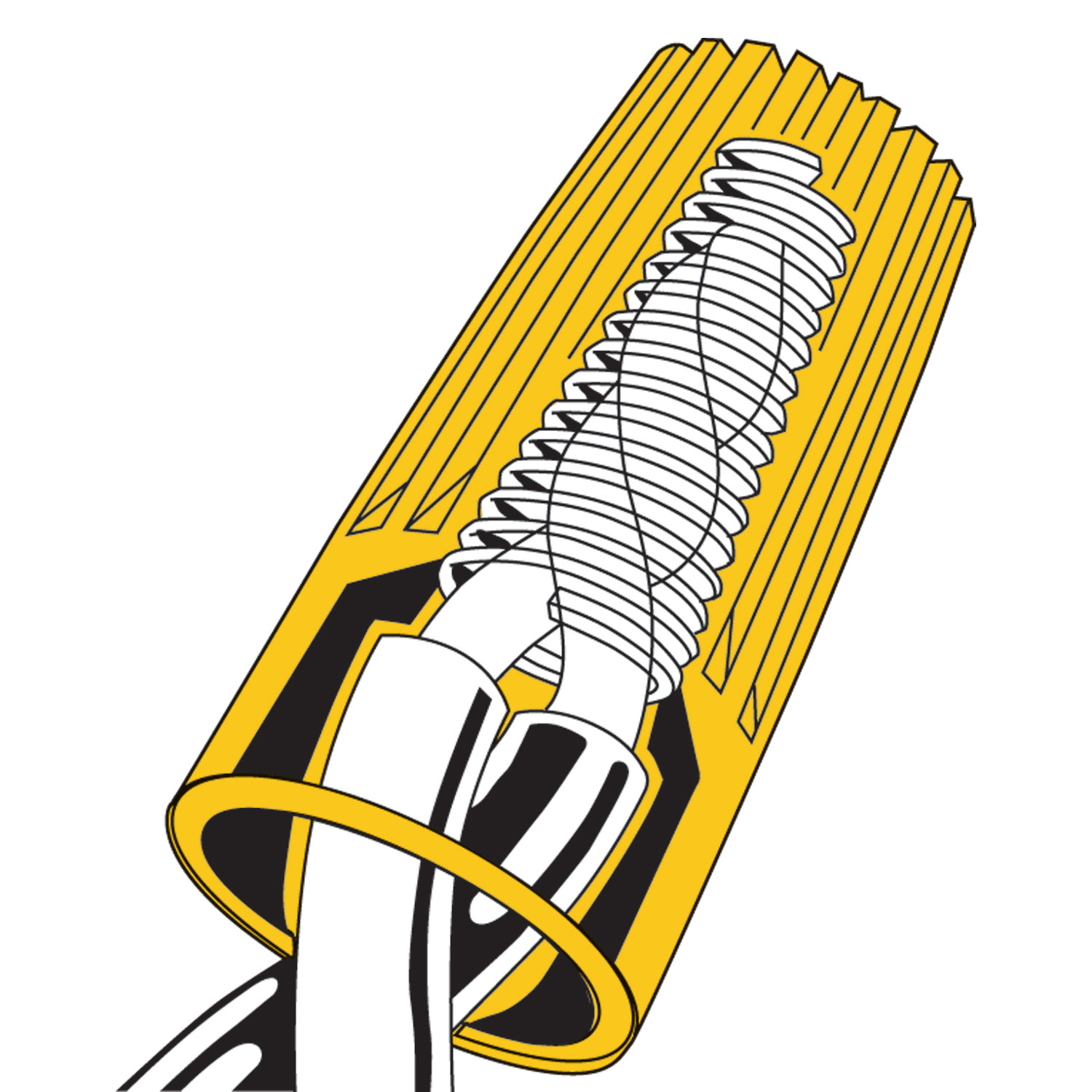

  • Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design
  • Handles broader range of wire connection combinations
  • Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use
  • High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper-coated spring helps resist corrosion
  • Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold
  • Coated with 100% pure copper, which reduces the corrosion common to tin- and zinc-coated products
  • Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp
  • Color coded for quick and easy size selection
  • Round wire spring construction that gives a positive conductor bite
  • (1) 22 AWG, (1) 20 AWG, (3) 16 AWG wire combinations
