Thomas & Betts 331M

Marrette® XTP® 331M High Quality Twist-On Wire Connector, Non-Winged Shell, Live Action Spring, 18 to 14 AWG Solid/Stranded Copper Wire, Polypropylene
Wire Connectors and Wire Nuts
7385675 331M
Thomas & Betts
$0.00 / ea

  • Color: Orange
  • Finish: Matte
  • Material: Polypropylene
  • Shell Style: Non-Winged
  • Spring Type: Live Action
  • Temperature Rating: 105
  • Type: High Quality
  • Voltage Rating: 600
  • Wire size: 18 to 14
  • Wire Type: Solid/Stranded Copper
Marrette® XTP® Twist-On Wire Connector, High Quality, Non-Winged, Live Action, Solid/Stranded Copper Wire, 18 to 14 AWG Wire, 600 VAC, 105 deg C, Polypropylene, Orange, Matte
  • Features
  • Wire connector to offer a non winged, variable volume live action spring in the connector
  • Deep, wide throat ensures full insulation coverage
  • Threaded entry helps guide large wire bundles into the spring chamber

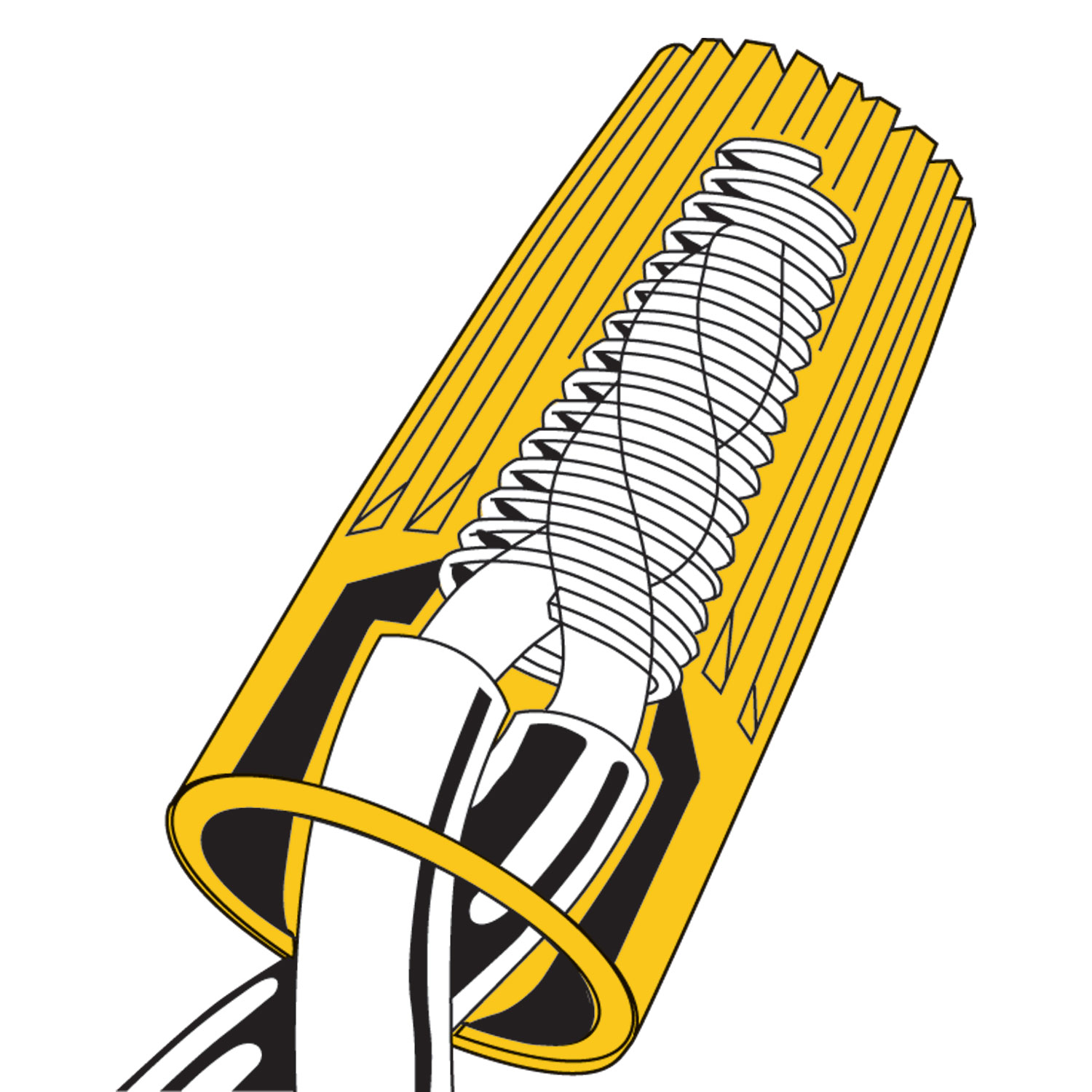

  • Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design
  • Handles broader range of wire connection combinations
  • Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use
  • High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper-coated spring helps resist corrosion
  • Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold
  • Coated with 100% pure copper, which reduces the corrosion common to tin and zinc coated products
  • Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp
  • Color coded for quick and easy size selection
  • Square wire spring construction that gives a positive conductor bite
  • 1000 VAC rated for lighting fixtures and signs
  • (2) 18 AWG, (3) 14 AWG wire combinations
