Thomas & Betts HS6-1-3.000R

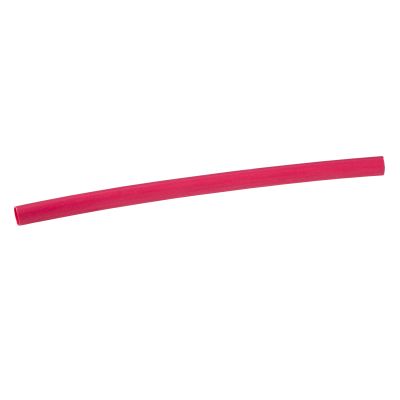

Shrink-Kon® HS6-1-3.000R HS Series Heat Shrink Tubing, 3/4 in ID Expanded, 0.24 in ID Recovered, 0.09 in THK Wall Recovered, 3/4 in L, Cross Linked Polyolefin, Red
Heatshrink
7412029
HS6-1-3.000R
Thomas & Betts
$0.00
/ ea
- COLOR: Red
- Inner Diameter Expanded: 3/4
- Inner Diameter Recovered: 0.24
- Length: 3/4
- Material: Cross Linked Polyolefin
- Series: HS Series
- Shrink Ratio: 3:1
- Shrink Temperature: 248
- Temperature Rating: -67 to 230
- Voltage Rating: 600
- Wall Thickness Recovered: 0.09
- Wall Type: Heavy
- Wire size: 6 to 2
Shrink-Kon® Heat Shrink Tubing, Series: HS Series, 600 V, 3/4 in ID Expanded, 0.24 in ID Recovered, Heavy Wall, 0.09 in Wall Thickness Recovered, 6 to 2 AWG Wire, 3:1 Shrink Ratio, 3/4 in Length, -67 to 230 deg F, 248 deg F Shrink, Cross Linked Polyolefin, Red
- Features
- Made of thermally stabilized cross linked polyolefin, enabling a recovered wall thickness greater than that of the cable jacket replaced
- Withstands severe mechanical requirements of U.R.D, submersible and direct burial installations
- Tubing, featuring an internally applied sealant, offers protection against moisture and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials
- High impact, abrasion, corrosion and chemical resistance
- Thermoplastic adhesive liner provides complete environmental protection and insulation
