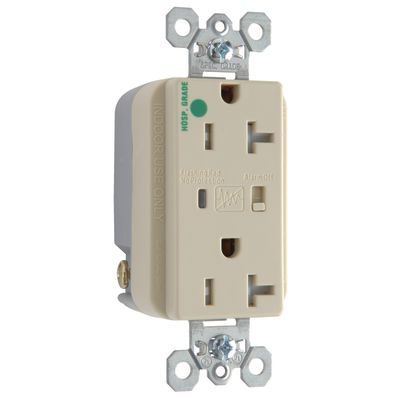

Legrand TR8300ISP

Pass & Seymour TR8300ISP Duplex Extra Heavy Duty Hospital/Specification Grade Isolated Ground Tamper-Resistant Surge Protective Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
Receptacles
7694553 TR8300ISP
Legrand
$0.00 / ea

Legrand TR8300ISP
  • Amperage Rating: 20
  • Color: Ivory
  • Connection: Back/Side Wire
  • Environmental Conditions: UL 94 V-2 Flammability Rated
  • Frequency Rating: 60
  • Material: Nylon/Thermoplastic
  • Mounting: Strap
  • Operating Temperature: -4 to 131
  • Phase: 1
  • Size: 1.75 in W x 0.94 in D x 3.82 in H
  • Type: Duplex Extra Heavy Duty Hospital/Specification Grade Isolated Ground Tamper-Resistant
  • Type of Indicators: Audible Alarm
  • Voltage Rating: 125
Pass & Seymour Surge Protective Receptacle, Duplex Extra Heavy Duty Hospital/Specification Grade Isolated Ground Tamper-Resistant, 125 VAC, 20 A, 60 Hz Frequency, 1 ph, Indicators: Audible Alarm, Back/Side Wire Connection, Strap Mounting, 1.75 in W x 0.94 in D x 3.82 in H Size, -4 to 131 deg F Operating, Nylon/Thermoplastic, Ivory, Environmental Conditions: UL 94 V-2 Flammability Rated
QTY
Add to Wishlist
  • Features
  • Offers increased transient protection, reliability and protection notification
  • 0.032 in THK, brass triple wipe power contracts for lasting retention
  • Auto-ground clip assures positive ground
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
  • 2-back wire holes for additional wiring flexibility
  • Backed out tri-drive brass terminal screws for faster installation
  • Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
  • Internal screw pressure plate back and side wire capability
