RAB Lighting WP2CSN150
RAB WP2CSN150 Cutoff HID Wallpack, (1) ED17 Lamp, 170 W Fixture, 120 VAC, Bronze Housing
Receptacles
4940873
WP2CSN150
Rab Lighting
$0.00
/ ea
- Amperage Rating: 4.5/3.2
- Average Life: 24000
- Ballast Type: NPF/Reactor

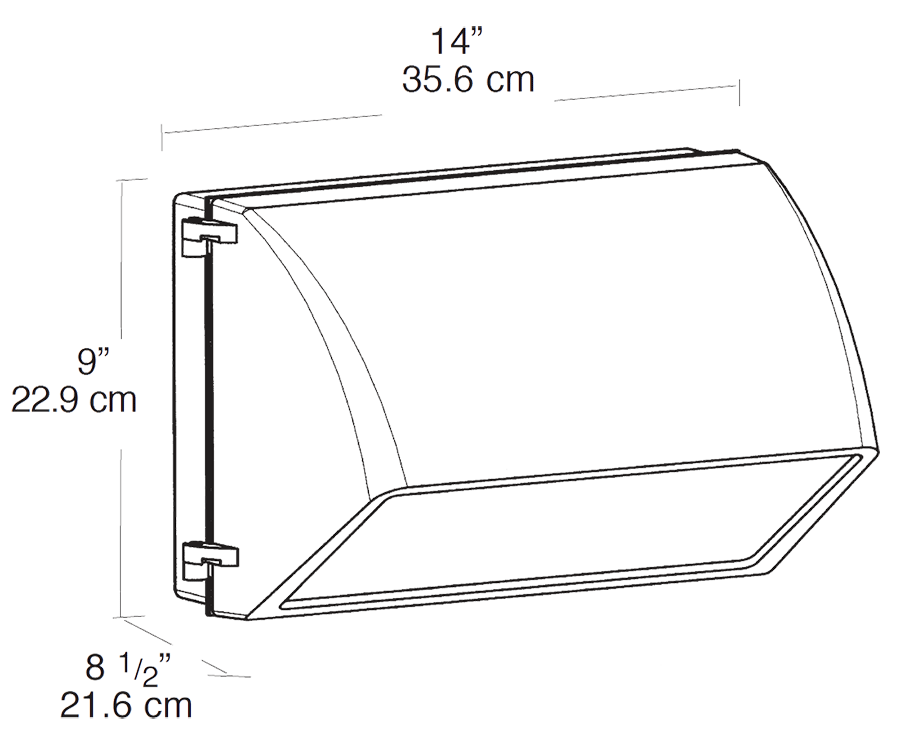

- Dimensions: 9 in H x 14 in W x 8-1/2 in D
- Fixture Wattage: 170
- Housing Finish: Bronze
- Housing Material: Die Cast Aluminum
- Lamp Base Type: Medium
- Lamp Type: ED17
- Lamp Wattage: 150
- Lens Type: Tempered Glass
- Lumens: 16000
- Mounting Type: Wall
- Number of Lamps: 1
- Series: WP2
- Type: Cutoff HID
- Voltage Rating: 120
RAB Wallpack, Cutoff HID, Series: WP2, 120 VAC, 170 W Fixture, 4.5/3.2 A, ED17 Lamp, 150 W Lamp, Medium Lamp Base, 1 Lamps, 24000 hr Average Life, NPF/Reactor Ballast, Tempered Glass Lens, 16000 Lumens, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 9 in H x 14 in W x 8-1/2 in D Dimensions
- Features
- Drilling template for easy box mounting
- Silicone gasket remains in-place during re-lamping
- Top, side and back conduit openings
- 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol
- Hinged refractor frame
- Continuous silicone rubber gasket
- Specular anodized aluminum, removable for installation, symmetrical light pattern maximizes distance between fixtures
- Symmetrical light pattern maximizes distance between fixtures reflector
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- Prismatic optics designed to minimize glare and throw light down and out
- Heat-resistant borosilicate glass
- 94 Lumens/W efficacy at lamp, 88% efficacy at ballast
- 4.5/3.2 A at 120 VAC
- Cut-off glare shield for friendly lighting
