Philips Advance ICF2S4290CM2LD35M

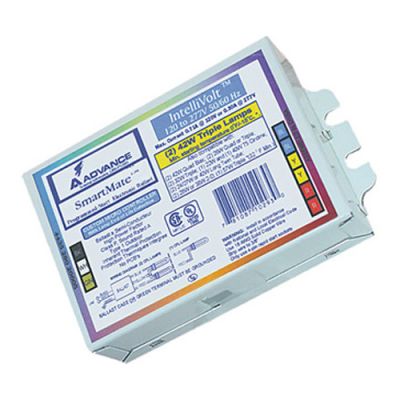

Advance SmartMate ICF2S4290CM2LD35M Electronic Compact Fluorescent Ballast, 4-Pin CFL Lamp, 42 W Lamp, 120 to 277 VAC, Programmed, 0.97 Ballast Factor
Ballasts, Starters and LED Drivers
6793087
ICF2S4290CM2LD35M
Philips Advance
$0.00
/ ea
- Amperage Rating: 0.78
- Ballast Factor: 0.97
- Dimensions: 4.55 in L x 3 in W x 1.29 in H
- Dimmable: Non-Dimmable
- Enclosure Type: NEMA 32
- Frequency Rating: 50/60
- Lamp Base Type: GX24Q 4-Pin
- Lamp Type: 4-Pin CFL
- Lamp Wattage: 42
- Material: Metal
- Number of Lamps: 2
- Power Factor: 0.98
- Start Type: Programmed
- Temperature Range: 90
- Total Harmonic Distortion: 10
- Type: Electronic
- Voltage Rating: 120 to 277
- Wattage: 93
Advance SmartMate Compact Fluorescent Ballast, Electronic, 4-Pin CFL Lamp, 42 W Lamp, 93 W Wattage, 120 to 277 VAC, 0.78 A, 50/60 Hz Frequency, Programmed Start, Total Harmonic Distortion: 10 %, Power Factor: 0.98, Non-Dimmable Dimmable, 2 Lamps, GX24Q 4-Pin Lamp Base, Ballast Factor: 0.97, NEMA 32 Enclosure, 90 deg C, Metal, 4.55 in L x 3 in W x 1.29 in H Dimensions
- Features
- Series lamp connection
- Blue color label identification
- 20 to 24 dB average ambient noise level
- High power factor
- Length mounting feet with SmartMate® dual entry color coded connectors
- IntelliVolt technology (120 to 277 VAC)
- Color coded connectors
- 1 or 2-lamp operation
- Operates multiple lamp wattages
- Reduces SKU requirements and inventory costs
- Enhances wiring accuracy and ease of assembly/installation
- Eliminates interference with infrared systems, anti-theft devices or other electronic equipment
