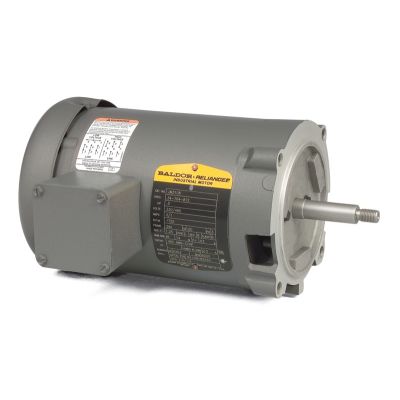

Baldor JM3115
Baldor-Reliance JM3115 Type 3420M Continuous Duty AC Motor, Open Enclosure, 1 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56J Frame, 3450 rpm Speed, C-Face Footed Mount
AC Motors
5406719
JM3115
Baldor
$0.00
/ ea
- Amperage Rating: 4.2/3.2/1.6
- Application Type: General Purpose AC Motors, Jet Pump (JM/JP) Motors, Sewage & Wastewater Pump Motors
- Bearing Type: Ball
- Dimensions: 12.34 in L x 9.09 in in W
- Enclosure Type: Open
- Frame: 56J
- Frequency Rating: 60
- Horsepower: 1
- Insulation Class: Class B
- Material: Steel
- Mounting Type: C-Face Footed
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.4
- Shaft Size: 5/8
- Speed: 3450
- Temperature Rating: 40 to 176
- Torque Rating: 1.51
- Type: Type 3420M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 3420M Continuous Duty, General Purpose AC Motors, Jet Pump (JM/JP) Motors, Sewage & Wastewater Pump Motors Application, 1 hp, 208/230/460 VAC, 4.2/3.2/1.6 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Open Enclosure, 56J Frame, 5/8 in Shaft, Reversible Rotation, 1.4 Service Factor, Ball Bearing, 1.51 ft-lb Torque, C-Face Footed Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 12.34 in L x 9.09 in in W Dimensions
- Features
- Corrosion resistant stainless steel shaft extension
- Slotted opposite DE shaft for easy installation
- Dynamically balanced rotor to reduce noise and increase bearing life
- Optimized airflow design providing higher horsepower in a smaller package
