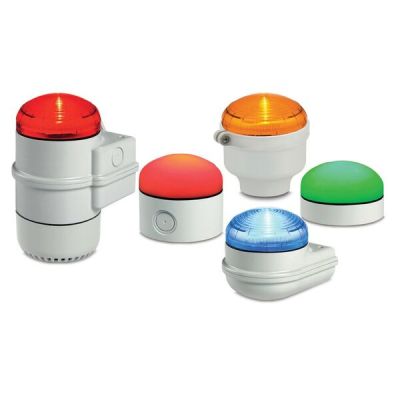

Federal SLM350C
StreamLine Modular Multifunctional Low Profile LED Beacon, Fresnel Lens, Clear - Compatible with 12-24VAC/DC or 120-240VAC (a). PLC compatible with PNP or NPN connections (a). Steady, flashing or simulated strobe. 50,000 hour LED. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Seven mounting base options. Type 4X, IP66 enclosure. IP69K compliant (b). CE Certified. UL and cUL listed. (a) Voltage and PLC connections are dependent on selected base. (b) IP69K with SLMBS, SLMBD or SLMBP bases and SLM-RR retaining ring.
Supporting Information
- PLC compatible with PNP or NPN connections|180 mA at 12 VDC, 110 mA at 24 VDC, 300 mA at 12 VAC, 270 mA at 24 VAC, 80 mA at 120 VAC, 55 mA at 240 VAC|105 fpm flash mode, 72 fpm strobe mode flash rate|Three separate light effects
- PLC compatible with PNP or NPN connections
- 180 mA at 12 VDC, 110 mA at 24 VDC, 300 mA at 12 VAC, 270 mA at 24 VAC, 80 mA at 120 VAC, 55 mA at 240 VAC
- 105 fpm flash mode, 72 fpm strobe mode flash rate
- Three separate light effects
- Brand: FederalAmperage Rating: 55/80/110/180/270/300Average Life: 50000Color: ClearDimensions: 3.9 in W x 3.9 in D x 1.67 in HFlash Rate: 72/105Flash Type: Flashing/Simulated Strobe/SteadyHousing Material: PolycarbonateLamp Type: LEDMounting Type: SurfaceNema Rating: NEMA 4X/IP66
