Molex 301000A01F060

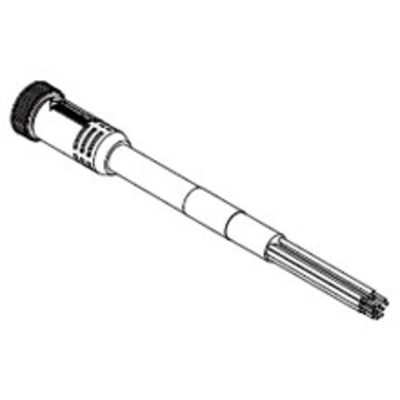

Brad Mini-Change Woodhead 301000A01F060 130008 C-Size Single Ended Cordset, Straight Female x Pigtail Connector, 1.83 m L Cable, 10 Poles, Single Keyway
Sensor Cables and Connection Systems
237573 301000A01F060
Molex
$0.00 / ea

Molex 301000A01F060
  • Amperage Rating: 7
  • Cable Length: 1.83
  • Cable Material: PVC
  • Cable Type: 16 AWG STOOW
  • Connector Material: PVC
  • Connector Type: Straight Female x Pigtail
  • Keyway: Single
  • Number of Poles: 10
  • Series: 130008
  • Type: C-Size Single Ended
  • Voltage Rating: 600
Brad Mini-Change Woodhead Cordset, C-Size Single Ended, Series: 130008, Straight Female x Pigtail Connector, PVC Connector, 16 AWG STOOW Cable, 1.83 m Cable Length, PVC Cable, 10 Pole, Single Keyway, 600 VAC, 7 A
QTY
Add to Wishlist
  • Features
  • This sensor cable comes with a yellow PVC jacket, gold plated brass contacts and black epoxy coated zinc coupling nut
  • IP67 prevents the entry of water during temporary submersion at a limited depth
  • Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
  • Maintains consistent pressure on the male pin to ensure optimum conductivity
  • High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
  • Molded key indicator
  • Easier alignment and mating of connector
  • Provides 100 lb minimum cable strain relief radiates stress in side-loaded conditions
