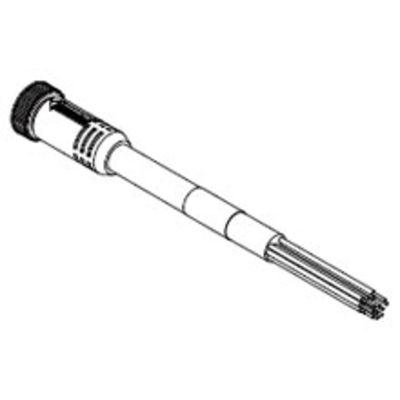

Molex 309002A01F120
Brad Mini-Change Woodhead Cordset, C-Size Single Ended, Series: 130008, Straight Male x Pigtail Connector, 1-1/8-16 UN Connector, PVC Connector, 16 AWG STOOW Cable, 3.66 m Cable Length, PVC Cable, 9 Pole, Single Keyway, 600 VAC/VDC, 7 A, Black/Blue/Green/Orange/Red/White Wire Pin
Supporting Information
- Patented Quad-Beam socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity|Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles|Molded key indicator easier alignment and mating of connector|Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions|Prevents the entry of water during temporary submersion at a limited depth|Brass contact, black epoxy coated zinc coupling nut, gold plating mating
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Molded key indicator easier alignment and mating of connector
- Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
- Prevents the entry of water during temporary submersion at a limited depth
- Brass contact, black epoxy coated zinc coupling nut, gold plating mating
- Brand: MolexAmperage Rating: 7Cable Length: 3.66Cable Material: PVCCable Type: 16 AWG STOOWConnector Material: PVCConnector Size: 1-1/8-16 UNConnector Type: Straight Male x Pigtail
