Molex 41481

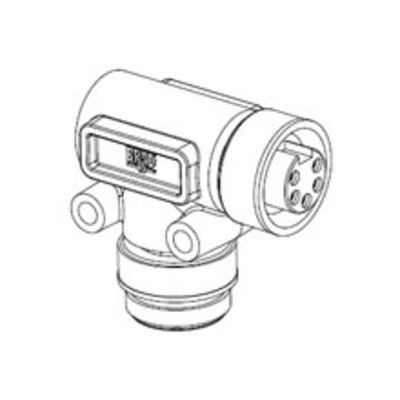

Brad Mini-Change 41481 130018 5-Pole 90 deg Adapter, 600 VAC/VDC, 8 A
Sensor Cables and Connection Systems
435057 41481
Molex
$0.00 / ea

Molex 41481
  • Amperage Rating: 8
  • Color: Yellow
  • Dimensions: 2.3 in L x 1.13 in W x 2.61 in H
  • Material: PVC
  • Nema Rating: IP67
  • Series: 130018
  • Type: 5-Pole
  • Voltage Rating: 600
Brad Mini-Change 90 deg Adapter, 5-Pole, Series: 130018, 600 VAC/VDC, 8 A, IP67 NEMA Rating, PVC, Yellow, 2.3 in L x 1.13 in W x 2.61 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Maintains consistent pressure on the male pin to ensure optimum conductivity
  • High performance, long lasting plating that maintains low-resistance through many mate/unmate cycle
  • Easier alignment and mating of connector
  • Provide 100 lb minimum cable strain relief
  • Radiates stress in side loaded condition
  • Prevent the entry of water during temporary submersion at a limited depth
  • PVC connector body, yellow cable jacket
  • -20 to 80 deg C operating temperature
  • Single keyway
  • 7/8-16 UN connection
  • Female to male end style
