Molex 706000D02F060

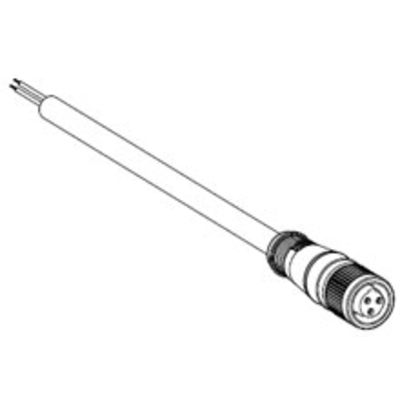

Brad Micro-Change Woodhead 706000D02F060 120072 Single Ended Cordset, 1/2-20 UNF Straight Female x Pigtail Connector, 1.83 m L Cable, 6 Poles, Dual Keyway
Sensor Cables and Connection Systems
568395 706000D02F060
Molex
$0.00 / ea

Molex 706000D02F060
  • Amperage Rating: 4
  • Cable Length: 1.83
  • Cable Material: PVC
  • Cable Type: 22 AWG
  • Connector Material: PVC
  • Connector Size: 1/2-20 UNF
  • Connector Type: Straight Female x Pigtail
  • Keyway: Dual
  • Number of Poles: 6
  • Series: 120072
  • Type: Single Ended
  • Voltage Rating: 250
  • Wire Pin Colors: Black/Blue/Green/Red/White/Yellow
Brad Micro-Change Woodhead Cordset, Single Ended, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Cable, 1.83 m Cable Length, PVC Cable, 6 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Black/Blue/Green/Red/White/Yellow Wire Pin
QTY
Add to Wishlist
  • Features
  • M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight panel mount design, enables enclosure meets NEMA 6P and IP67 protection
  • Copper alloy contact, black epoxy coated zinc coupling nut, gold over nickel plating mating material
  • Auto color code 2P to 6P
