Woodhead 103001C01F060

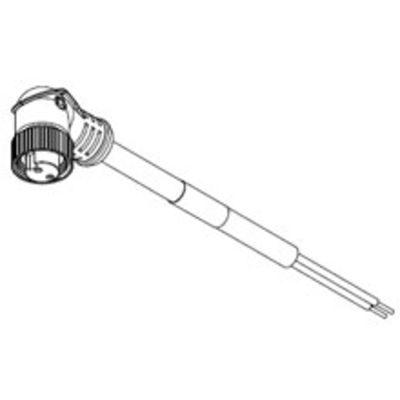

Brad reg; Mini-Change reg; 103001C01F060 130006 A-Size/B-Size/C-Size Single Ended Cordset, 1 in A-Size Female Connector, 6 ft L Cable, 3 Poles, Single Keyway
Sensor Cables and Connection Systems
7468348
103001C01F060
Woodhead
$0.00
/ ea
- Amperage Rating: 13
- Angle: 90
- Cable Length: 6
- Cable Material: PVC
- Cable Type: SOO
- Connector Material: PVC
- Connector Size: 1 in A-Size
- Connector Type: Female
- IEC Rating: IP67
- Keyway: Single
- Nema Rating: NEMA 6P
- Number of Poles: 3
- Series: 130006
- Type: A-Size/B-Size/C-Size Single Ended
- Voltage Rating: 600
- Wire Pin Colors: Green, Red/Black, Red/White
Brad® Mini-Change® Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130006, Female Connector, 1 in A-Size Connector, PVC, SOO Cable, 6 ft Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 VAC/VDC, 13 A, 90 deg, Green, Red/Black, Red/White Wire Pin, IP67 IEC, NEMA 6P
- Features
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Molded key indicator easier alignment and mating of connector
- Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
- Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
