Woodhead 105000A01F090

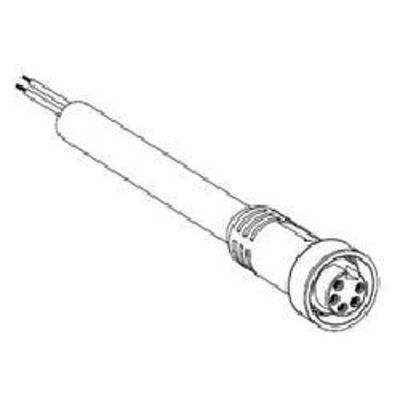

Brad reg; Mini-Change reg; 105000A01F090 130006 A-Size/B-Size/C-Size Single Ended Cordset, 1 in A-Size Female Connector, 9 ft L Cable, 5 Poles, Single Keyway
Sensor Cables and Connection Systems
7483733 105000A01F090
Woodhead
$0.00 / ea

  • Amperage Rating: 8
  • Angle: Straight
  • Cable Length: 9
  • Cable Material: PVC
  • Cable Type: STOOW
  • Connector Material: PVC
  • Connector Size: 1 in A-Size
  • Connector Type: Female
  • IEC Rating: IP67
  • Keyway: Single
  • Nema Rating: NEMA 6P
  • Number of Poles: 5
  • Series: 130006
  • Type: A-Size/B-Size/C-Size Single Ended
  • Voltage Rating: 600
  • Wire Pin Colors: White, Red, Green/Yellow, Orange, Black
Brad® Mini-Change® Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130006, Female Connector, 1 in A-Size Connector, PVC, STOOW Cable, 9 ft Cable Length, PVC Cable, 5 Pole, Single Keyway, 600 VAC/VDC, 8 A, Straight, White, Red, Green/Yellow, Orange, Black Wire Pin, IP67 IEC, NEMA 6P
  • Features
  • Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
  • Molded key indicator easier alignment and mating of connector
  • Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
  • Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
  • Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
