Woodhead 105002A03F030

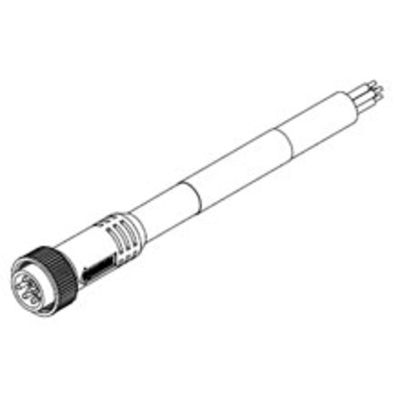

Brad reg; 105002A03F030 130006 Single Ended Cordset, Straight Male x Pigtail Connector, 3 ft L Cable, 5 Poles, Single Keyway
Sensor Cables and Connection Systems
7270241
105002A03F030
Woodhead
$0.00
/ ea
- Amperage Rating: 5.6
- Cable Length: 3
- Connector Type: Straight Male x Pigtail
- Keyway: Single
- Nema Rating: IP68
- Number of Poles: 5
- Series: 130006
- Type: Single Ended
- Voltage Rating: 300
Brad® Cordset, Single Ended, Series: 130006, Straight Male x Pigtail Connector, 3 ft Cable Length, 5 Pole, Single Keyway, 300 VAC/VDC, 5.6 A, IP68 NEMA Rating
- Features
- Male pigtail gender
- Patented, Quad Beam™ socket contact with stainless steel sleeve
- Maintains consistent pressure on the male pin to ensure optimum conductivity
- High performance, long lasting plating that maintains low resistance through many mate/unmate cycles
- Molded key indicator
- Easier alignment and mating of connector
- Provides 100 lb minimum cable strain relief radiates stress in side loaded conditions
