Woodhead 114030K12M040

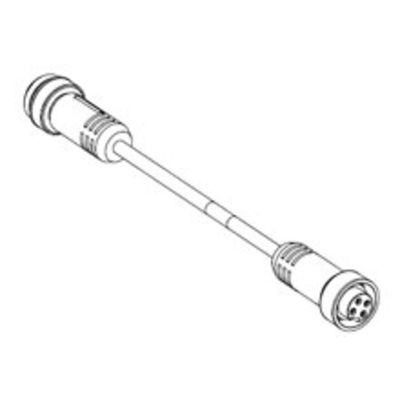

Brad reg; Mini-Change reg; 114030K12M040 130010 A-Size Double Ended Cordset, 1 in A-Size Female x Male Connector, 4 m L Cable, 4 Poles, Single Keyway
Sensor Cables and Connection Systems
7479954
114030K12M040
Woodhead
$0.00
/ ea
- Amperage Rating: 10
- Angle: Straight
- Cable Length: 4
- Cable Material: TPE
- Cable Type: TC-ER
- Connector Material: TPE
- Connector Size: 1 in A-Size
- Connector Type: Female x Male
- IEC Rating: IP67
- Keyway: Single
- Nema Rating: NEMA 6P
- Number of Poles: 4
- Series: 130010
- Type: A-Size Double Ended
- Voltage Rating: 600
- Wire Pin Colors: Black, Blue, Brown, White
Brad® Mini-Change® Cordset, A-Size Double Ended, Series: 130010, Female x Male Connector, 1 in A-Size Connector, TPE, TC-ER Cable, 4 m Cable Length, TPE Cable, 4 Pole, Single Keyway, 600 VAC/VDC, 10 A, Straight, Black, Blue, Brown, White Wire Pin, IP67 IEC, NEMA 6P
- Features
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Molded key indicator easier alignment and mating of connector
- Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
- Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
