Woodhead 14W07

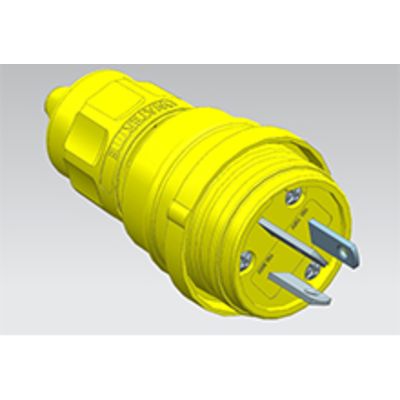

Woodhead reg; Watertite reg; 14W07 130146 Male Cordset, 125/250 VAC, 15/10 A, 3 Poles, 3 Wires, Yellow
Sensor Cables and Connection Systems
6865586
14W07
Woodhead
$0.00
/ ea
- Amperage Rating: 15/10
- Color: Yellow
- Enclosure: IP67/IP69K
- Material: Silicone
- Number of Poles: 3
- Number Of Wires: 3
- Series: 130146
- Type: Male
- Voltage Rating: 125/250
Woodhead® Watertite® Cordset, Male, Series: 130146, 125/250 VAC, 15/10 A, 3 Poles, 3 Wires, IP67/IP69K Enclosure, Silicone, Yellow
- Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screws pre-set in open position ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screwdrivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
- F2 body 1/2 in cable grip
- Nickel plated brass plug blades and connector contacts
- NEoTEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Lexan receptacle cover plate and closure caps
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
