Woodhead 14W33-W
Woodhead reg; Watertite reg; 14W33-W 130154 Standard Molded W Cordset, 20 A at 125 VAC, 3 ft L Cord
Sensor Cables and Connection Systems
7149064
14W33-W
Woodhead
$0.00
/ ea
- Color: Yellow
- Conductor size: 12
- Cord Length: 3
- Electrical Ratings: 20 A at 125 VAC
- Enclosure: IP67
- Plug Type: NEMA 5-20
- Receptacle Type: Triple
- Series: 130154
- Temperature Rating: -40 to 75
- Type: Standard

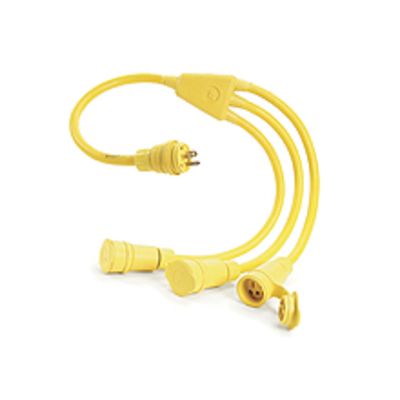

Woodhead® Watertite® Molded W Cordset, Standard, Series: 130154, 20 A at 125 VAC, 3 ft Cord, 12 AWG Conductor, Triple Receptacle, NEMA 5-20 Plug, IP67 Enclosure, -40 to 75 deg C, Yellow
- Features
- 2 pole with 3 wire
- F2 1/2 in cord grip body
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- 12/3 SOOW cord
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
