Woodhead 14W33B123IN

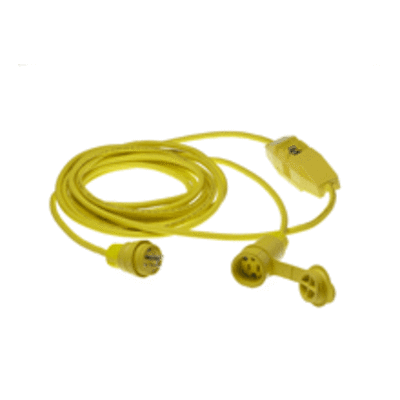

Woodhead reg; 14W33B123IN 130143 In-Line GFCI Cordset With In-Line GFCI, (3) 12 AWG SJOW Conductor, 50 ft L, 125 VAC
Sensor Cables and Connection Systems
7149069
14W33B123IN
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Conductor size: 12 AWG
- Conductor Type: SJOW
- Insulation Material: Nylon
- Length: 50
- Number of Conductors: 3
- Series: 130143
- Temperature Rating: -40 to 75
- Voltage Rating: 125
Woodhead® In-Line GFCI Cordset, Series: 130143, 12 AWG Conductor, 3 Conductors, SJOW Conductor, 50 ft Length, 20 A, 125 VAC, Nylon Insulation, -40 to 75 deg C, Yellow
- Features
- F2 1/2 in cord grip body
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
