Woodhead 14W47-Y

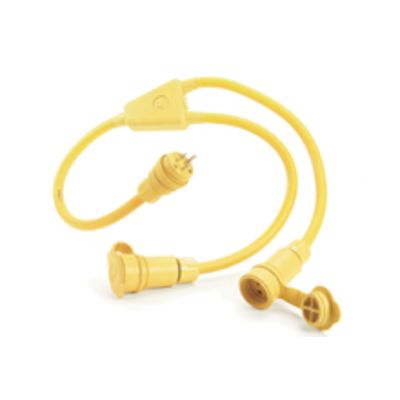

Woodhead reg; 14W47-Y 130154 Male/Female Standard Molded Y Cordset, 15 A at 125 VAC, 3 ft L Cord
Sensor Cables and Connection Systems
6777793
14W47-Y
Woodhead
$0.00
/ ea
- Color: Yellow
- Conductor size: 12
- Cord Length: 3
- Electrical Ratings: 15 A at 125 VAC
- Enclosure: IP67
- Material: Rubber
- Receptacle Type: Duplex
- Series: 130154
- Temperature Rating: -40 to 75
- Type: Male/Female Standard
Woodhead® Molded Y Cordset, Male/Female Standard, Series: 130154, 15 A at 125 VAC Electrical Rating, 3 ft Cord Length, 12 AWG Conductor, Duplex Receptacle, IP67 Enclosure, -40 to 75 deg C, Rubber, Yellow
- Features
- F2 body 1/2 in cord grip
- 2-pole/3-wire configuration
- SOW cord
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
