Woodhead 15050-1M

Woodhead reg; Super-Safeway reg; 15050-1M 130153 1-Phase Industrial Duty GFCI In-Line Cordset, 120 VAC, 15 A, 12 AWG Conductor, NEMA 3R NEMA Rating
Sensor Cables and Connection Systems
7214435 15050-1M
Woodhead
$0.00 / ea

  • Amperage Rating: 15
  • Color: Black/Yellow
  • Conductor size: 12
  • Jacket Material: Nylon
  • Material: Nylon
  • Nema Rating: NEMA 3R
  • Number of Conductors: 3
  • Series: 130153
  • Type: 1-Phase Industrial Duty
  • Voltage Rating: 120

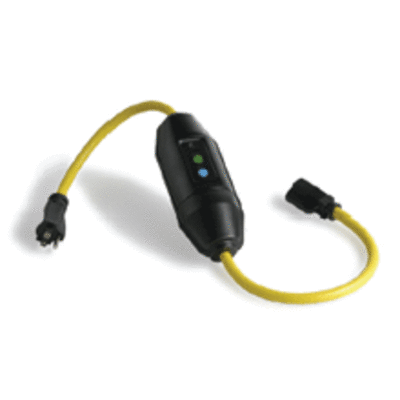

Woodhead® Super-Safeway® GFCI In-Line Cordset, 1-Phase Industrial Duty, Series: 130153, 120 VAC, 15 A, 12 AWG Conductor, 3 Conductors, Nylon Jacket, NEMA 3R Rating, Nylon, Black/Yellow
  • Features
  • 0.43 in Dia x 2 ft L cord
  • Internal double c-clamp cord grip body size
  • Manual GFCI reset
  • Portable mounting, 1-phase
  • 12/3 SJTW cord
  • Wide range of plug and connector products assures the proper fit for any application
  • Electromagnetic latching mechanism prevents nuisance tripping during rough service applications
  • Rugged, rainproof, UV stabilized enclosure resists abuse, sunlight, oils and chemicals
  • Open neutral sensing relay detects and prevents operation under threatening conditions
  • Highly visible LED indicator confirms even at a distance
  • Internal strain relief provides superior hold to keep cord in place at this critical juncture
  • Optional Super-Safeway® Neo-TEX® Paracril OZO rubber multiple outlet box available for application flexibility
