Woodhead 207000A01F150

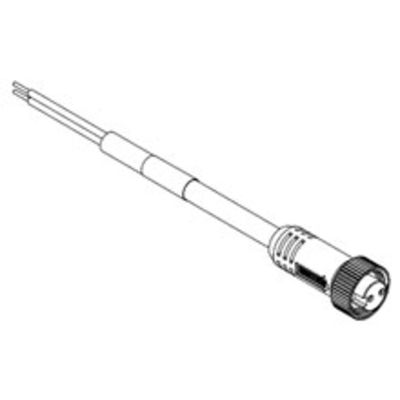

Brad Mini-Change 207000A01F150 130007 Size B Internal Thread Single Ended Cordset, Straight Female x Pigtail Connector, 15 ft L Cable, 7 Poles
Sensor Cables and Connection Systems
7552159
207000A01F150
Woodhead
$0.00
/ ea
- Amperage Rating: 8
- Cable Length: 15
- Cable Material: PVC
- Cable Type: STOOW
- Connector Material: PVC
- Connector Type: Straight Female x Pigtail
- Nema Rating: IP67
- Number of Poles: 7
- Series: 130007
- Type: Size B Internal Thread Single Ended
- Voltage Rating: 600
- Wire Pin Colors: Black/Blue/Green-Yellow/Orange/White/White-Black/Red
Brad Mini-Change Cordset, Size B Internal Thread Single Ended, Series: 130007, Straight Female x Pigtail Connector, PVC, STOOW Cable, 15 ft Cable Length, PVC Cable, 7 Poles, 600 VAC/VDC, 8 A, Black/Blue/Green-Yellow/Orange/White/White-Black/Red Wire Pin Colors, IP67
- Features
- Patented Quad-Beam™ contact provides high reliability and low resistance
- Epoxy coated coupling nut is corrosion and weld slag resistant
- Cable is oil, water and abrasion resistant
