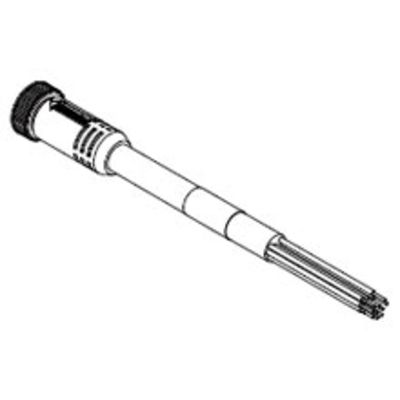

Woodhead 302000A01F030
Brad® Mini-Change® Woodhead® Cordset, C-Size Single Ended, Series: 130008, Straight Female x Pigtail Connector, PVC Connector, 16 AWG STOOW Cable, 0.91 m Cable Length, PVC Cable, 12 Pole, Single Keyway, 600 VAC, 5 A
Supporting Information
- This sensor cable comes with a yellow PVC jacket, gold plated brass contacts and black epoxy coated zinc coupling nut|IP67 prevents the entry of water during temporary submersion at a limited depth|Patented Quad-Beam socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity|Maintains consistent pressure on the male pin to ensure optimum conductivity|High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles|Molded key indicator|Easier alignment and mating of connector|Provides 100 lb minimum cable strain relief radiates stress in side-loaded conditions
- This sensor cable comes with a yellow PVC jacket, gold plated brass contacts and black epoxy coated zinc coupling nut
- IP67 prevents the entry of water during temporary submersion at a limited depth
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Maintains consistent pressure on the male pin to ensure optimum conductivity
- High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Molded key indicator
- Easier alignment and mating of connector
- Provides 100 lb minimum cable strain relief radiates stress in side-loaded conditions
- Brand: WoodheadAmperage Rating: 5Cable Length: 0.91Cable Material: PVCCable Type: 16 AWG STOOWConnector Material: PVCConnector Type: Straight Female x PigtailKeyway: SingleNumber of Poles: 12Series: 130008Type: C-Size Single Ended
