Woodhead C03001A48M020

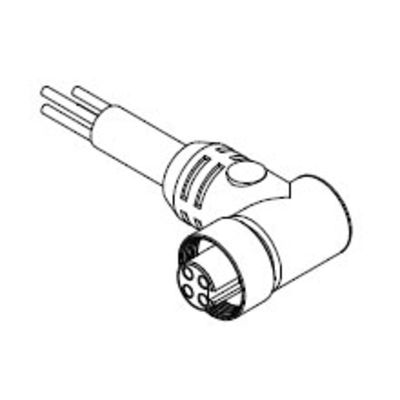

Brad Quick-Change C03001A48M020 130063 Power Trunk/Feeder Single Ended Threaded Cordset, 90 deg Female x Pigtail Connector, 2 m L Cable, 3 Poles, Single Keyway
Sensor Cables and Connection Systems
7617072
C03001A48M020
Woodhead
$0.00
/ ea
- Amperage Rating: 25
- Angle: 90
- Cable Length: 2
- Cable Material: PVC
- Cable Type: STOOW/TC-ER
- Connector Material: PVC
- Connector Type: 90 deg Female x Pigtail
- Keyway: Single
- Nema Rating: IP67
- Number of Poles: 3
- Series: 130063
- Type: Power Trunk/Feeder Single Ended Threaded
- Voltage Rating: 600
- Wire Pin Colors: Black/Green-Yellow/White
Brad Quick-Change Cordset, Power Trunk/Feeder Single Ended Threaded, Series: 130063, 90 deg Female x Pigtail Connector, PVC, STOOW/TC-ER Cable, 2 m Cable Length, PVC Cable, 3 Poles, Single Keyway, 600 VAC/VDC, 25 A, 90 deg, Black/Green-Yellow/White Wire Pin Colors, IP67
