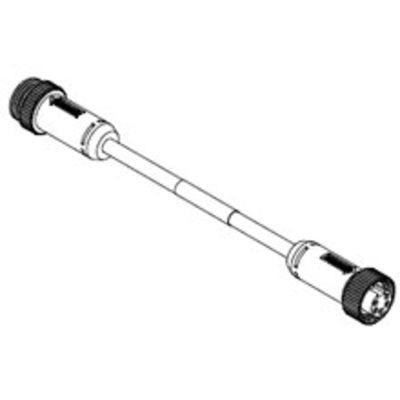

Woodhead DND11A-M030
Brad DeviceNet Mini-Change Molex Cordset, Double Ended, Series: 130025, Straight Male x Straight Female Connector, 7/8-16 Connector, PVC Connector, 22 AWG Straight Cable, 3 m Cable Length, PVC Cable, 5 Pole, Single Keyway, 300 VAC/VDC, 4 A, Drain/Red/Black/White/Blue Wire Pin
Supporting Information
- Brass contact, die cast zinc coupling nut, gold plating mating|Drop line double ended cord sets are used in a variety of network configurations, these drop line connectors are designed to connect a tee or a port on a passive drop box to an active device|Maintains consistent pressure on the male pin to ensure optimum conductivity|High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles|Easier alignment and mating of connector|Provides 100 lb minimum cable strain relief|Radiates stress in side loaded conditions
- Brand: WoodheadAmperage Rating: 4Cable Length: 3Cable Material: PVCCable Type: 22 AWG StraightConnector Material: PVCConnector Size: 16Connector Type: Straight Male x Straight FemaleKeyway: SingleNumber of Poles: 5Series: 130025
