nVent Hoffman EDR19FM38U

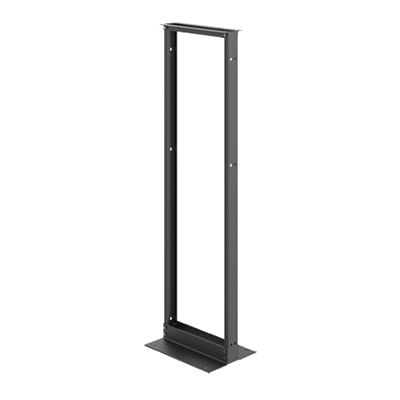

Hoffman Open Frame Rack, 2-Post 38-Rack Unit, 15 in Width, 20-1/4 in Depth, 72 in Height, 1000 lb, Aluminum, Black Polyester Powder Painted
Supporting Information
- Range of heights from 4 ft to 9 ft (24U to 58U) to match capacity requirements, 19 in Rack Packages are 7-feet high|Side rails are tapped on both sides with 12-24UNC threads for quick installation|EIA Universal 5/8 in - 5/8 in - 1/2 in vertical mounting hole pattern matches industry standards|RU markings on both front and back of uprights make it easier to mount equipment|Packed unassembled in individual cartons, assembly hardware is furnished for convenient storage and installation|Convenient rack and cable manager packages offered with either one or two 6 in cable managers
- Frame is a strong and lightweight aluminum (6063-T6 alloy), extruded or formed, with RU markings on both front and back of uprights
- 2-post open frame racks satisfy basic functional requirements for structuring cable
- Range of heights from 4 to 9 ft (24U to 58U) to match capacity requirements; 19-in rack packages are 7 ft high
- Side rails are tapped on both sides with 12-24 UNC threads for quick installation
- EIA Universal 5/8 in, - 5/8 in, - 1/2 in vertical mounting hole pattern matches industry standards
- RU markings on both front and back of uprights make it easier to mount equipment
- Packed unassembled in individual cartons, assembly hardware (including twenty 12-24 mounting screws) is furnished for convenient storage and installation
- Convenient rack and cable manager packages offered with either one or (2) 6 in cable managers
- Brand: nVent HoffmanDepth: 20-1/4Finish: Black Polyester Powder Painted
