nVent Hoffman PVT3F681

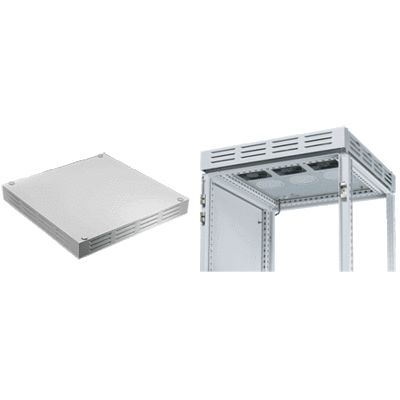

Hoffman PVT3F681 DPC Vented Top With Integral Fan Tray, For Use With ProLine™ 600 x 800 mm Enclosure Frame Top, NEMA 1, IP20 Rating, 115 VAC, 50/60 Hz, Steel, Light Gray
Horizontal and Vertical Managers
4513995
PVT3F681
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Dimensions: 23.26 in W x 31.12 in D
- Material: Steel
- Series: DPC
- Specifications: NEMA 1, IP20 Rating, 115 VAC, 50/60 Hz
- Suitable For Use With: ProLine™ 600 x 800 mm Enclosure Frame Top
ProLine Vented Top with Fan Tray, fits 600x800mm, Painted, 115V
- Features
- Vented top with integral fan tray provides a cooling/ventilation solution for electronic and networking applications
- An integral fan tray with three pre-wired and mounted fans provides up to 200 to 300 cfm of exhaust
- The deeper vented tops (500 through 800 mm D) have integral fan trays with cutouts for mounting additional fans
- Accessory fan kits (consisting of three pre-wired fans) can be installed to provide additional airflow
- Unused fan positions are provided with covers to prevent short circuiting of air flow
- Since the fan pulls air through the enclosure to cool equipment
- The vented top is designed to be used in place of a standard top
- Bolts are provided to secure vented top to frame
- The enclosure can be lifted with a vented top installed (requires accessory lifting eyes)
