nVent Hoffman F44T124GVPWK

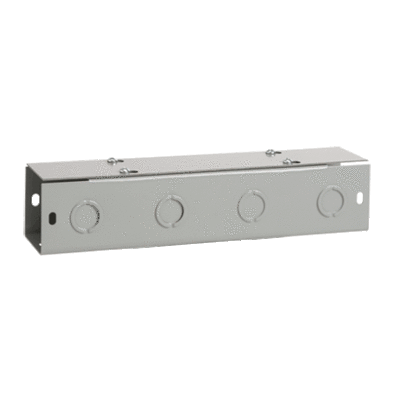

Hoffman Wireway, Lay-In Straight Section, Series: F40FC, 24 in Length, 4 in Width, 4 in Height, Flat Cover, 16 Knockouts, 1/2 to 1-1/4 in Knockout, NEMA 1, Steel, Gray, Polyester Powder Painted
Supporting Information
- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs|Sections are completely open on one side so wires and cables can be laid-in along run|Lay-in design eliminates the action of pulling wires or cables, which can result in insulation damage|Flat-cover design supports mounting flush with walls or ceilings|Covers feature keyhole screw slots which simplify cover installation and removal, and limit risk of losing securing screws|Sections available in lengths from 12 to 120 in, with or without knockouts|4 inx4 in and 6 inx6 in Straight Sections re-designed with Snap Connect features for ease-of-installation, sections are backwards compatible if a legacy U-Connector is present
- Open top assembly
- A variety of lengths and fittings provide increased design flexibility
- Keyhole screw slots on flat covers provide easy access
- All sections and fittings are completely open on one side so wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull through wiring system
- Flat cover design allows for mounting flush with walls or ceilings
- 16 and 14 ga pre-painted steel covers and bodies
- ANSI 61 gray polyester powder paint finish inside and out
- (8) 1/2 to 3/4 in, (8) 1 to 1-1/4 in knockouts
- Brand: nVent HoffmanColor: GrayCover Type: FlatFinish: Polyester Powder PaintedHeight: 4Knockout Size: 1/2 to 1-1/4Length: 24Material: SteelNema Rating: NEMA 1Number of Knockouts: 16Series: F40FC
