Panduit LDPH10IG8-A

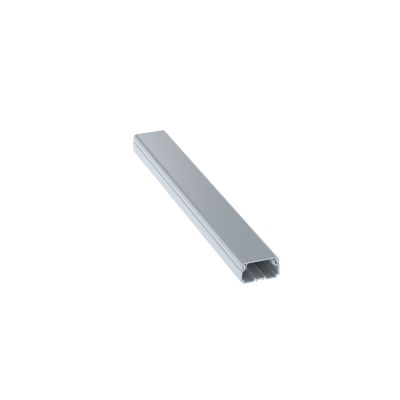

Panduit Pan-Way LDPH10IG8-A 2-Piece Latching Power Rated Channel Tamper-Resistant Non-Metallic Raceway With Pre-Punched Mounting Holes, Factory Applied Adhesive Tape, 8 ft L x 1.52 in W x 0.86 in H, 1 Channel, PVC
Low Voltage Raceway
6919523
LDPH10IG8-A
Panduit
$0.00
/ ft
- Back Type: Adhesive
- Cable Type: Coaxial/Data Grade/Electrical/Fiber Optic
- Color: International Gray
- Cover Type: Hinged
- Finish: Smooth
- Height: 0.86
- Length: 8
- Material: PVC
- Mounting Type: Surface
- Number Of Channels: 1
- Series: LDPH10
- Temperature Rating: 0 to 50
- Type: 2-Piece Latching Power Rated Channel Tamper-Resistant
- Voltage Rating: 600
- Width: 1.52
Panduit Pan-Way Non-Metallic Raceway, 2-Piece Latching Power Rated Channel Tamper-Resistant, Series: LDPH10, 8 ft Length, 1.52 in Width, 0.86 in Height, 600 VAC, 1 Channel, Coaxial/Data Grade/Electrical/Fiber Optic Cable, Adhesive Back, Hinged Cover, 0 to 50 deg C, Surface Mounting, PVC, International Gray, Smooth
- Features
- Pre-assembled 2 piece hinged cover design cover remains open without use of tools or fixtures, speeds placement of cables into the raceway
- Non-slip liner cover, keeps cover from sliding when in an open position, particularly useful when product is used in vertical applications
- 1 in bend radius fittings
- Highly tamper-resistant difficult for untrained personnel to access the raceway, provides maximum security for communication cabling and maximum safety for power cabling
- Mounting holes in base eliminates need for drilling holes in raceway and speeds installation
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
- Tamper-resistant 2 piece latching surface raceway
- Full length adhesive strip allows easy tool-free installation and works well for temporary mounting adhesive backing
- Designed to route, protect and conceal data, voice and video cabling
- It features a factory applied adhesive backing for fast mounting
