Eaton B-Line Inc. 88-12LSP

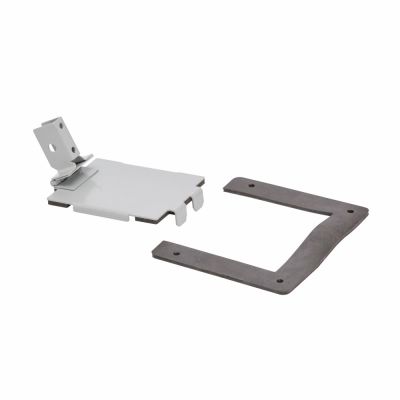

B-Line 88-12LSP Flat Wireway Sealing Plate, 8 x 8 in, For Use With NEMA 12/IP54 Hinged Latched Cover Wireway, Steel, Gray
Raceway Fittings Low Voltage
7357462
88-12LSP
Eaton B-Line Inc.
$0.00
/ ea
- Color: Gray
- Dimensions: 8 in W x 8 in H
- Finish: Polyester Powder Coated
- Material: Steel
- Size: 8 x 8
- Suitable For Use With: NEMA 12/IP54 Hinged Latched Cover Wireway
- Type: Flat
Eaton B-Line series sealing plate, Sealing plate, flat, NEMA 12, Steel, 8" X 8"
- Features
- Wash and phosphate undercoat
- Hardware and latches are zinc plated
- Houses runs of control and power cable
- All continuous welded seams are finished smooth
- Wireway body and cover are fabricated from 14 ga steel
- Flanges are 10 ga steel
- External and internal edges are rounded to prevent injury or damage to cable
- Covers are secured to the wireway and fitting body with heavy duty butt hinges and quick-release latches
- Covers have a fixed, oil-resistant gasket
- An oil-resistant gasket is provided for installation between flanges
- All covers and sealing plate can be hinged completely open or removed to allow for continuous lay-in cable feed
- Hinged/latched cover
