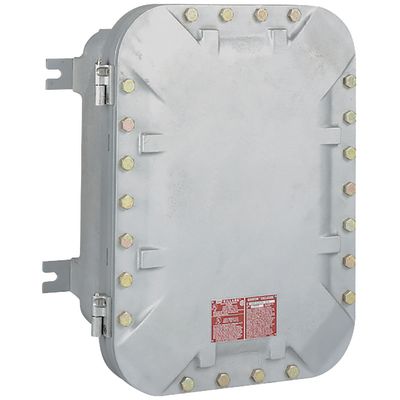

Hubbell Killark EXB-10148 N34
Killark QUANTUM EXB-10148 N34 Junction Box, 15-1/4 in W x 10.9 in D, NEMA 3/4/4X, Copper-Free Aluminum
Conduit Body
4675431
EXB-10148 N34
Hubbell Killark
$0.00
/ ea
- Material: Copper-Free Aluminum
- Mounting Type: Ductile Lug
- Cable Entry Size: 5
- Capacity: 1148
- Color: Gray
- Cover Type: Bolted
- Depth: 10.9
- Finish: Lacquer Paint
- Nema Rating: NEMA 3/4/4X
- Panel Size: 14 in L x 10 in W x 8 in D
- Series: EXB
- Temperature Rating: 60
- Width: 15-1/4
EXB Series, 10 X 14 X 8, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Bolted Enclosure
- Features
- High strength, lighter weight, corrosion-resistant Cast Copper-Free Aluminum construction
- Reduced number of cover bolts
- Cover O-ring, nitrile (BUNA-N) material, supplied standard for a type 4X rating
- Mounting lugs are bi-directional, bolt-on, made from ductile aluminum alloy
- Back pan mounting holes pre-drilled
- Conduit and device openings factory or field installed
- Aluminum hinges and stainless steel hardware standard on mid to large size boxes
- Recessed flange notches to allow for easier cover opening
- Fewer cover bolts - computer aided design lessens the number of cover bolts by eliminating corner bolts
- Reduces installation and maintenance time
