Hubbell Killark EXB-242410 N34

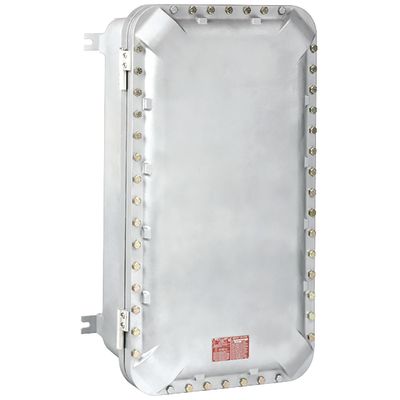

Killark QUANTUM EXB-242410 N34 Junction Box, 28.38 in W x 14.19 in D, NEMA 3/4/4X, Copper-Free Aluminum
Conduit Body
6895074
EXB-242410 N34
Hubbell Killark
$0.00
/ ea
- Cable Entry Size: 6
- Capacity: 5428.707
- Color: Gray
- Cover Type: Bolted
- Depth: 14.19
- Finish: Lacquer Paint
- Material: Copper-Free Aluminum
- Mounting Type: Ductile Lug
- Nema Rating: NEMA 3/4/4X
- Panel Size: 24 in L x 24 in W x 10 in D
- Series: EXB
- Temperature Rating: 60
- Width: 28.38
Killark QUANTUM Junction Box, Series: EXB, 28.38 in Width, 14.19 in Depth, NEMA 3/4/4X, Bolted Cover, 24 in L x 24 in W x 10 in D Panel, 6 in Cable Entry Size, 5428.707 cu-in, Ductile Lug Mount, 60 deg C, Copper-Free Aluminum, Lacquer Paint, Gray
- Features
- High strength, lighter weight, corrosion-resistant Cast Copper-Free Aluminum construction
- Reduced number of cover bolts
- Cover O-ring, nitrile (BUNA-N) material, supplied standard for a type 4X rating
- Mounting lugs are bi-directional, bolt-on, made from ductile aluminum alloy
- Back pan mounting holes pre-drilled
- Conduit and device openings factory or field installed
- Aluminum hinges and stainless steel hardware standard on mid to large size boxes
- Recessed flange notches to allow for easier cover opening
- Fewer cover bolts - computer aided design lessens the number of cover bolts by eliminating corner bolts
- Reduces installation and maintenance time
