Hubbell Killark GRE-300L

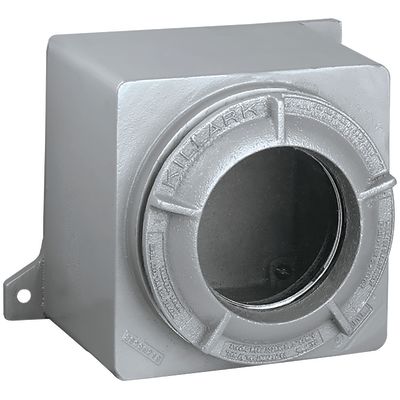

Killark GRE-300L Compact Rectangular Enclosure, 6-13/16 in W x 5-23/32 in D, NEMA 3/4/4X NEMA Rating, Copper-Free Aluminum
Conduit Body
6828874
GRE-300L
Hubbell Killark
$0.00
/ ea
- Cable Entry Size: 3/4 in NPT
- Capacity: 95
- Color: Gray
- Cover Type: Thread
- Depth: 5-23/32
- Finish: Polyester/Epoxy Powder Coated
- Material: Copper-Free Aluminum
- Mounting Type: Lug
- Nema Rating: NEMA 3/4/4X
- Series: GR Series
- Temperature Rating: -20 to 60
- Type: Compact Rectangular
- Width: 6-13/16
GR Series, 4.63 X 5.75 X 3.28, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Viewing Lens Screw Cover Enclosure
- Features
- Compact rectangular enclosures with threaded lens covers, provides view of the interior
- High strength, lighter weight, corrosion-resistant Cast Copper-Free Aluminum construction and tempered soda lime glass, cemented in place
- Cover O-ring, nitrile (BUNA-N) material, supplied standard for a type 4X rating
- Cast mounting lugs are standard on all boxes
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover
- Conduit and device openings factory or field installed
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior
