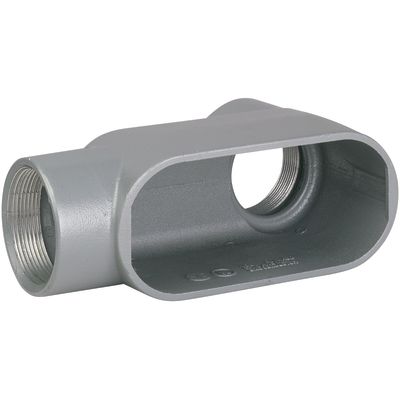

Hubbell Killark LB27SA
Killark Duraloy 7 CORROSAFE 7 LB27SA Type LB Conduit Body, 3/4 in Hub, 7 Form, 7 cu-in Capacity, Aluminum, Powder Coated
Conduit Body
367679
LB27SA
Hubbell Killark
$0.00
/ ea
- Capacity: 7
- Color: Gray
- Connection Type: Thread
- Dimensions: 5-3/8 in L x 1-3/4 in W x 2-1/2 in H
- Enclosure: NEMA 3
- Finish: Powder Coated
- Form: 7
- Hub Size: 3/4
- Material: Aluminum
- Number of Hubs: 2
- Type: Type LB
3/4" LB Hub, Aluminum Form 7 Conduit Body
- Features
- Intermateability UL Listed and CSA certified interchangeability with competitive products
- Suitable for wet locations when used with gaskets
- Innovative spring clip design for installation ease and repeat usage
- Smooth integral wire bushings protects cable
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- Flat back design for greater wiring capacity and mounting stability
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- To provide access to conductors for pulling, splicing and maintenance
- Electrostatically applied powder coated
- Copper free aluminum (less than 4/10 of 1%)
