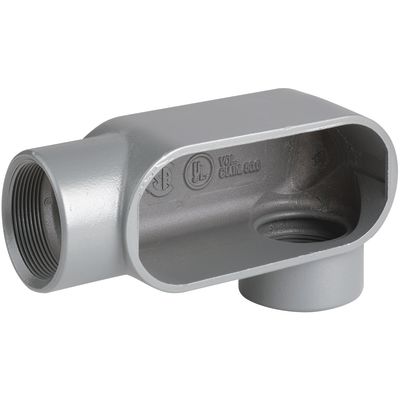

Hubbell Killark LL67
Killark Duraloy 7 Conduit Body, Type LL, 2 in Hub, 2 Hubs, 48 cu-in Capacity, Form 7 Form, Thread Connection, Iron, Tri-Coated, Gray, 8-1/4 in L x 3-1/8 in W x 4-1/4 in H Dimensions
Supporting Information
- Tri-coat finish of electro-zinc, chromate sealant and electrostatically applied powder coating|Suitable for wet locations when used with gaskets|High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets|Intermateability UL listed and CSA certified interchangeability with competitive products|Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal|Smooth integral wire bushings protects cable from damage when wires are pulled through opening|Flat-back design for greater wiring capacity and mounting stability|Innovative spring clip design for installation ease and repeat usage
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Suitable for wet locations when used with gaskets
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- For use with threaded rigid conduit steel or aluminum
- Flat back design for greater wiring capacity and mounting stability
- Smooth integral wire bushings protects cable
- Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- To provide access to conductors for pulling, splicing and maintenance
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- Innovative spring clip design for installation ease and repeat usage
- Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- Brand: Hubbell KillarkCapacity: 48Color: GrayConnection Type: ThreadDimensions: 8-1/4 in L x 3-1/8 in W x 4-1/4 in HFinish: Tri-CoatedForm: Form 7
