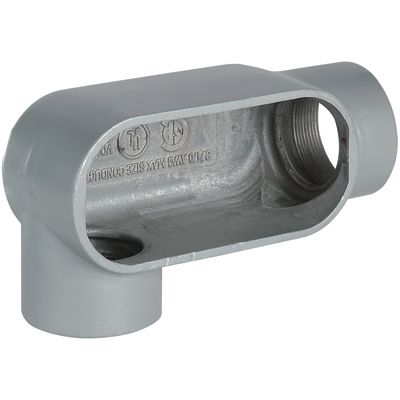

Hubbell Killark LR77SA

Killark CorroSAFE 7 Duraloy 7 LR77SA Type LR Conduit Body, 2-1/2 in Hub, 7 Form, 131.5 cu-in Capacity, Copper Free Aluminum, Electrostatic Powder Coated
Conduit Body
7544816 LR77SA
Hubbell Killark
$0.00 / ea

Hubbell Killark LR77SA
  • Capacity: 131.5
  • Color: Gray
  • Connection Type: Thread
  • Dimensions: 10-15/16 in L x 4-3/8 in W x 6-3/16 in H
  • Enclosure: NEMA 3
  • Finish: Electrostatic Powder Coated
  • Form: 7
  • Hub Size: 2-1/2
  • Material: Copper Free Aluminum
  • Number of Hubs: 2
  • Type: Type LR
2-1/2" LR Hub, Aluminum Form 7 Conduit Body
QTY
Add to Wishlist
  • Features
  • Intermateability UL listed and CSA certified interchangeability with competitive products
  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
  • For wet locations when used with gasketed covers
  • Innovative spring clip design for installation ease and repeat usage
  • Smooth integral wire bushings protects cable from damage when wires are pulled through opening
  • For use with threaded rigid conduit steel or aluminum
  • Flat back design for greater wiring capacity and mounting stability
