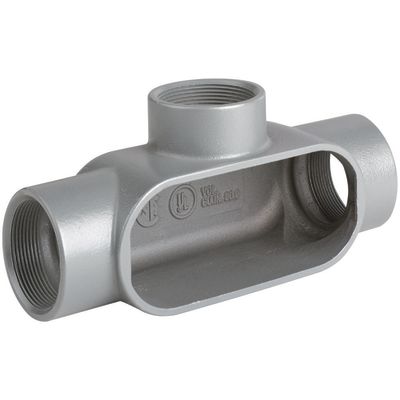

Hubbell Killark T57
Killark Duraloy 7 T57 Type T Conduit Body, 1-1/2 in Hub, Form 7 Form, 27 cu-in Capacity, Iron, Tri-Coated
Conduit Body
532269
T57
Hubbell Killark
$0.00
/ ea
- Capacity: 27
- Color: Gray
- Connection Type: Thread
- Dimensions: 8-7/16 in L x 3-11/16 in W x 2-9/16 in H
- Finish: Tri-Coated
- Form: Form 7
- Hub Size: 1-1/2
- Material: Iron
- Number of Hubs: 3
- Type: Type T
1-1/2" T Hub, Iron Form 7 Conduit Body
- Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Suitable for wet locations when used with gaskets
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- For use with threaded rigid conduit steel or aluminum
- Flat back design for greater wiring capacity and mounting stability
- Smooth integral wire bushings protects cable
- Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- To provide access to conductors for pulling, splicing and maintenance
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- Innovative spring clip design for installation ease and repeat usage
- Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
