O-Z/Gedney LB125ACG

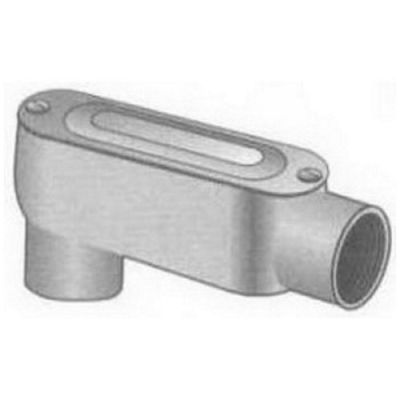

O-Z/GEDNEY LB125ACG TYPE LB CONDUIT OUTLET BODY WITH COVER AND GASKET, 1-1/4 IN HUB, 34 CU-IN CAPACITY, DIE CAST COPPER FREE ALUMINUM, ALUMINUM ENAMEL/EPOXY POWDER COATED
Conduit Body
19525
LB125ACG
O-Z/Gedney
$0.00
/ ea
- Capacity: 34
- Connection Type: Tapered FNPT
- Dimensions: 7-7/8 in L x 2-1/2 in W
- Enclosure: NEMA FB-1/FB-2.1
- Finish: Aluminum Enamel/Epoxy Powder Coated
- Hub Size: 1-1/4
- Material: Die Cast Copper Free Aluminum
- Number of Hubs: 2
- Type: Type LB
OZ-Gedney Type LB Conduit Body, Cover And Gasket Assembly, 1-1/4 IN Hub, Length: 7-7/8 IN, 2-1/2 IN Width, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (2 AWG) Conductors, 34 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
- Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
