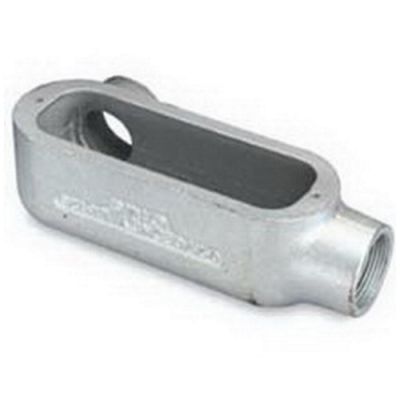

O-Z/Gedney LL200
O-Z/GEDNEY SPEC 5™ LL200 TYPE LL CONDUIT OUTLET BODY, 2 IN HUB, 70 CU-IN, MALLEABLE IRON, ALUMINUM ENAMEL/ZINC ELECTROPLATED
Conduit Body
19360
LL200
O-Z/Gedney
$0.00
/ ea
- Capacity: 70
- Connection Type: Tapered FNPT
- Dimensions: 10-5/8 in L x 3-1/2 in H
- Enclosure: NEMA FB-1
- Finish: Aluminum Enamel/Zinc Electroplated
- Hub Size: 2
- Material: Malleable Iron
- Mounting Type: Surface
- Number of Hubs: 2
- Type: Type LL
OZ-Gedney Spec 5 Type LL Conduit Body, 2 IN Hub, Length: 10-5/8 IN, 3-1/2 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, Connection: Tapered FNPT, 3 (2/0 AWG) Conductors, 70 CU-IN Volume, Third Party Certification: UL Fi
- Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton™ cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
