O-Z/Gedney LR125

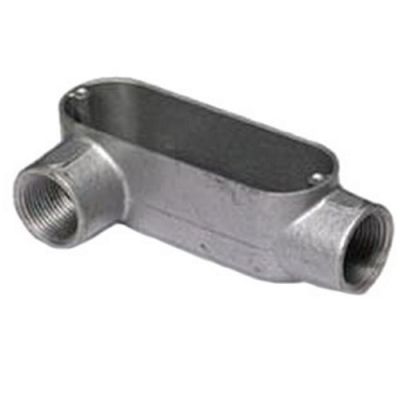

O-Z/Gedney Spec 5™ Conduit Outlet Body, Type LR, 2 Hubs, 32 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 8-1/4 in L x 2-5/8 in H
Supporting Information
- Smooth, rounded integral bushing in hubs protects conductor insulation|Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity|Form 35 malleable iron UNILETS are high tensile strength and ductility|High corrosion resistance, high impact and shock resistance|Sizes with flat back design ideal where fitting is mounted flat against surface|Raintight when an Appleton cover and gasket are installed|Tapered threaded hubs (NPT)|Raintight when used with gasketed covers|Internal volume and maximum wire capacity clearly marked on castings|Complete interchangeability with other manufacturers style 5 or 35 conduit bodies|Malleable iron suitable for use in concrete
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
- High corrosion resistance, high impact and shock resistance
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Raintight when an Appleton™ cover and gasket are installed
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
- Malleable iron suitable for use in concrete
- Brand: O-Z/GedneyCapacity: 32Connection Type: Tapered FNPTDimensions: 8-1/4 in L x 2-5/8 in HEnclosure: NEMA FB-1Finish: Aluminum Enamel/Zinc Electroplated
