O-Z/Gedney GUAT75

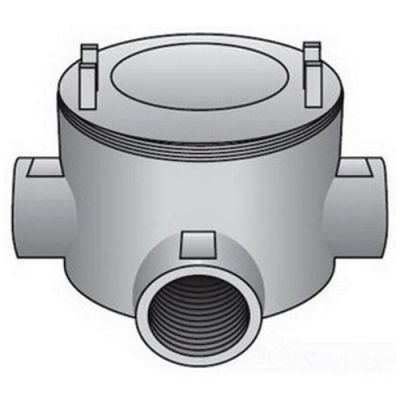

O-Z/GEDNEY GUAT-75 DUST-IGNITIONPROOF EXPLOSIONPROOF CONDUIT OUTLET BOX, 3/4 IN, 3 IN COVER OPENING, 15 CU-IN, ALUMINUM ENAMEL/ZINC ELECTROPLATED
Explosionproof Outlet Boxes
19372
GUAT75
O-Z/Gedney
$0.00
/ ea
- Capacity: 15
- Cover Opening Size: 3
- Dimensions: 3-5/8 in H x 3-5/8 in W x 2-1/8 in D
- Finish: Aluminum Enamel/Zinc Electroplated
- Material: Malleable Iron
- Series: GUA
- Size: 3/4
- Suitable For Use With: IMC/Rigid Conduit
- Type: Dust-Ignitionproof Explosionproof
O-Z/Gedney Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GUA, 3/4 in, 3 in Cover Opening Size, 15 cu-in, For Use With: IMC/Rigid Conduit, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 3-5/8 in H x 3-5/8 in W x 2-1/8 in D
- Features
- For use in hazardous locations to provide for change in conduit direction access to conductors and as pull and splice boxes
- They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- O-ring gasket provides NEMA 4 rating
- Smooth hub bushings protect insulation when pulling conductors
- Cast in brackets on cover for use with breaker bar tools for tightening/loosening
- Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
