Hubbell Raco 3792-1

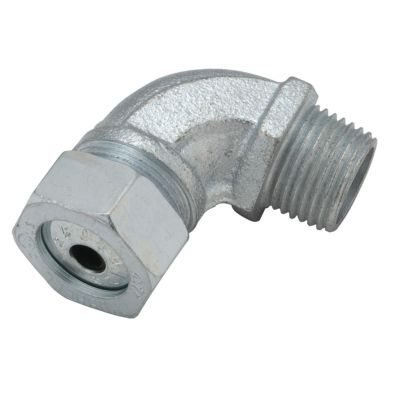

RACO 3792-1 Form 1 Liquidtight Strain Relief Angled Cord Connector, 1/2 in Trade, 1/8 to 1/4 in Cable Openings, Malleable Iron, Electro-Plated Zinc
Cord Connectors and Grips
6901781 3792-1
Hubbell Raco
$0.00 / ea

Hubbell Raco 3792-1
  • Angle: 90
  • Cable Openings: 1/8 to 1/4
  • Color: Silver
  • Connection Type: Thread
  • Dimensions: 1-3/64 in OD
  • Finish: Electro-Plated Zinc
  • Material: Malleable Iron
  • Trade Size: 1/2
  • Type: Form 1 Liquidtight Strain Relief
RACO Liquidtight Angled Cord Connector, Form 1 Strain Relief, 1/2 in Trade, Cable Openings: 0.125 to 0.25 in, Thread Connection, 90 deg Angle, Malleable Iron, Electroplated Zinc, Silver, 1.8 in L x 1.047 in W x 1.899 in H Dimensions
QTY
Add to Wishlist
  • Features
  • All steel/malleable construction provides mechanical strength
  • Unique neoprene grommet design, imprinted size range on washers, wet or dry locations
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
  • 35/64 in L thread
  • 1-3/8 in thread to bend
  • 1-7/16 in nut to bend
  • 1/2-14 NPT
