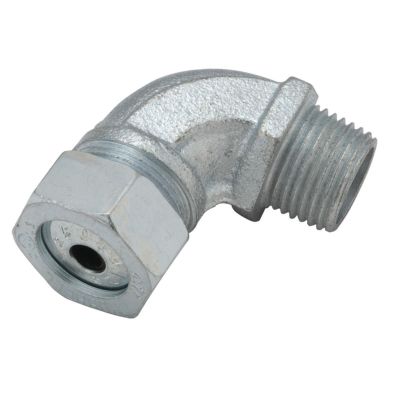

Hubbell Raco 3792-5
CORDGRIP CONN 90 1/2 IN (.375-.500) IRON
Supporting Information
- All metallic components are zinc electro plated for added corrosion protection|Use RACO locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel|All steel/malleable construction provides mechanical strength|Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal|RACO liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations|Washers have cable size range imprinted for identification - eliminates misidentifying inventory|1-13/32 in thread to bend|Unique neoprene grommet design, imprinted size range on washers, wet or dry locations|9/16 in L thread|1/2-14 NPT
- All steel/malleable construction provides mechanical strength
- Unique neoprene grommet design, imprinted size range on washers, wet or dry locations
- Washers have cable size range imprinted for identification - eliminates misidentifying inventory
- Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
- All metallic components are zinc electro plated for added corrosion protection
- RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
- 9/16 in L thread
- 1-13/32 in thread to bend
- 1-5/8 in nut to bend
- 1/2-14 NPT
- Brand: Hubbell RacoAngle: 90Cable Openings: 3/8 to 1/2Color: SilverConnection Type: ThreadDimensions: 1-11/64 in ODFinish: Electro-Plated Zinc
