Hubbell Wiring H0509

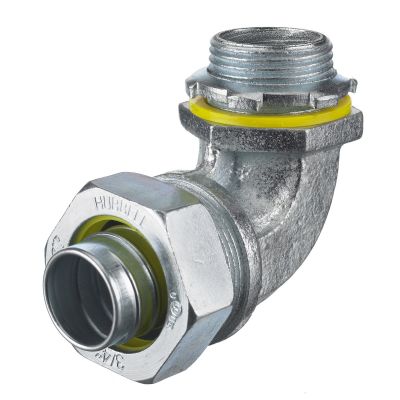

Wiring Device-Kellems H0509 Non-Insulated Male Metallic Liquidtight Connector, 1/2 in Trade, 90 deg, Steel, Zinc Plated
Liquidtite-Metallic Connectors
7152361
H0509
Hubbell Wiring
$0.00
/ ea
- Angle: 90
- Dimensions: 1.31 in L x 1.34 in W x 1.44 in H
- Finish: Zinc Plated
- Material: Steel
- Mounting Type: Threaded
- Suitable For Use With: PolyTuff® I Non-Metallic and Liquidtight Metal Conduit
- Throat Size: 0.61
- Trade Size: 1/2
- Type: Non-Insulated Male Metallic
Kellems Wire Management, Liquidtight System, 90 Degree Male Liquid Tight Connector, 1/2", Steel, Non-Insulated
- Features
- Hexagonal, screw-machined steel thru 1 in-and malleable iron on larger sizes
- Nut compresses gland-ring onto conduit
- Split, nylon, gland-ring compresses conduit onto ferrule
- Non integral, reusable steel ferrule is easily installed, to seal conduit
- Threaded 1 piece steel body
- Tapered, machined threads fasten securely and provide additional liquid tight sealing
- Locknut has hardened steel tangs to grip securely
- Nylon gasket provides liquid tight seal at hub
- Suitable for use in wet locations when a listed sealing ring is used between box and fitting
- NPT male thread connection
