nVent Hoffman LWC233116

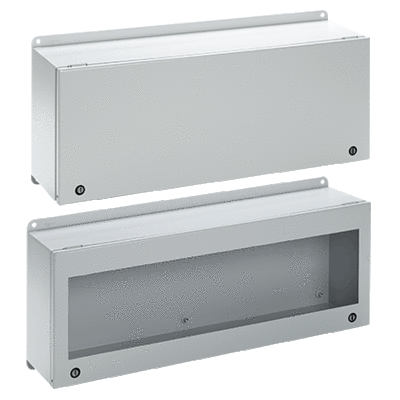

nVent HOFFMAN INLINE Landscape Enclosure, Series: A54, 230 mm Length, 310 mm Width, 155 mm Depth, NEMA 4/12/IP66, Hinged Window Cover, Lock: Quarter Turn Slotted Latch, Wall Mount, Steel, Polyester Powder Painted, Light Gray
Supporting Information
- Metric dimensions|Seams continuously welded and ground smooth|External formed body flange channels away liquids|Large perimeter body opening|External welded-on mounting brackets for easy installation|Bonding provision on cover and door|Removable hinged door|Door opens 180 deg
- Metric dimensions
- 16 ga steel construction
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- External welded on mounting brackets for easy installation
- Seamless foam in place gasket
- Bonding provision on cover and door
- Hardware kit includes panel mounting screws and grounding hardware
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Door opens 180 deg
- Window door models include flush mounted 4.8 mm (3/16 in) clear polycarbonate window
- Brand: nVent HoffmanColor: Light GrayCover Type: Hinged WindowDepth: 155Finish: Polyester Powder Painted
