nVent Hoffman EXE36016090
nVent HOFFMAN ZONEX™ EXE36016090 HL3 Non-Metallic Hazardous Location Enclosure, 160 mm L x 360 mm W x 90 mm D, NEMA 4/4X/12 NEMA Rating, Fiberglass
Air Conditioner Disconnects
7277836
EXE36016090
nVent Hoffman
$0.00
/ ea
- Color: Black
- Depth: 90
- Finish: Smooth Low Gloss
- Length: 160
- Material: Fiberglass
- Mounting Type: DIN Rail/Panel
- Nema Rating: NEMA 4/4X/12
- Panel Size: 344 x 144 x 1.5
- Series: HL3
- Temperature Rating: -50 to 100
- Type: Non-Metallic
- Width: 360

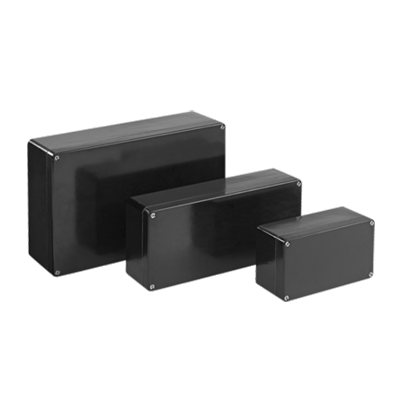

ZonEx Non-Metallic Terminal Enclosure, 160x360x90mm, Black, Fiberglass
- Features
- Compression molded, high impact strength, fiberglass body and cover
- Cover includes recessed, retained, combination head
- Retained, continuous, high temperature silicon gasket within a labyrinth seal between cover and body
- Durable and reusable, internal M4 or M6 stainless steel inserts for DIN and panel mounting
- Covered mounting screw provisions outside of gasketed area, sized M4 (NO 8) or M6 (1/4 in)
- Mounting location dimensions are molded into the back side of the enclosure
- Compression molded fiberglass with added agents to address static charge build-up
- High impact strength as well as high temperature rated
- Cover screws are matte stainless steel finish
