Leviton 1K240-1W

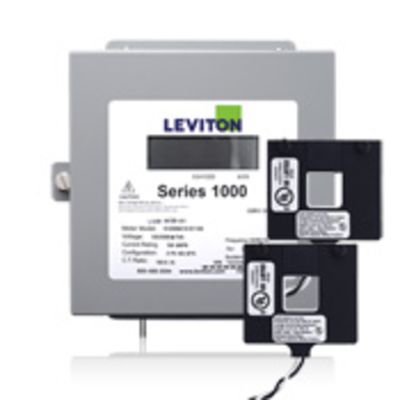

Leviton VerifEye 1K240-1W 1000 3-Wire Surface Mount Split Meter Kit, 120/208 VAC, 100 A
Transformers
7210526 1K240-1W
Leviton
$0.00 / ea

  • Amperage Rating: 100
  • Dimensions: 6.19 in L x 6.19 in W x 3.25 in H
  • Display Type: LCD
  • Enclosure Type: NEMA 1
  • Material: Steel
  • Phase: 1
  • Series: 1000
  • Type: 3-Wire Surface Mount Split
  • Voltage Rating: 120/208
Series 1000 120/240 V 100A Indoor Kit with 2 Split Core, 1P3W, Gray
  • Features
  • Measures kWh and peak demand (optional)
  • Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
  • Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
  • Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosure is surface mount industrial grade JIC steel
  • Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
  • Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
  • Load indicator LED verifies meter functionality
  • Reverse phase indicator LED illuminates if the meter is improperly installed
  • 48 in L maximum current transformer lead
  • Gray color
  • 18 to 14 AWG terminal accommodation
