- Measures kWh and peak demand (optional)|Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers|Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier|Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor|Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR|Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset|Load indicator LED verifies meter functionality|Reverse phase indicator LED illuminates if the meter is improperly installed|48 in L maximum current transformer lead|Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface|18 to 14 AWG terminal accommodation
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- 18 to 14 AWG terminal accommodation

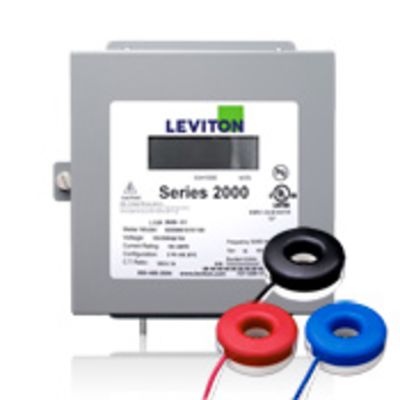

- Brand: LevitonAmperage Rating: 100Dimensions: 6.19 in L x 3.25 in W x 7.5 in HDisplay Type: LCDEnclosure Type: NEMA 1Material: SteelPhase: 3Series: 2000Type: 4-Wire Surface Mount SolidVoltage Rating: 120/208
