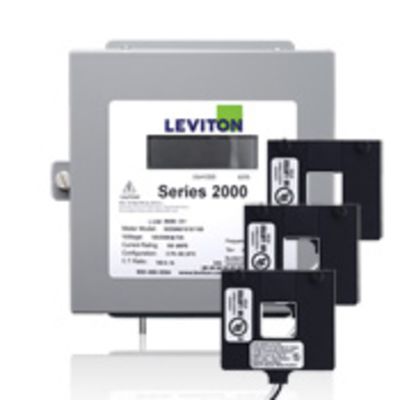

Leviton 2K480-8D
Series 2000 480 V 800 A Demand Indoor Kit Split Core, 3P4W
Supporting Information
- Measures kWh and peak demand (optional)|Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers|Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface|Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR|Large LCD display shows kWh and optional peak and instantaneous kW with demand reset|Load indicator LED verifies meter functionality|Reverse phase indicator LED illuminates if the meter is improperly installed|48 in L maximum current transformer lead|18 to 14 AWG terminal accommodation
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- 18 to 14 AWG terminal accommodation
- Brand: LevitonAmperage Rating: 800Dimensions: 6.19 in L x 3.25 in W x 7.5 in HDisplay Type: LCDEnclosure Type: NEMA 1Material: SteelPhase: 3Series: 2000Type: 4-Wire Surface Mount SplitVoltage Rating: 277/480
