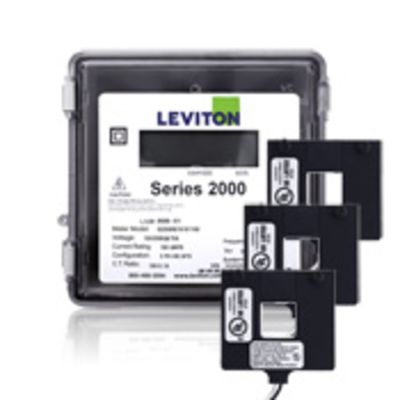

Leviton 2O208-2W
Series 2000 120/208V 200A Outdoor KWH Meter Kit with 3 Split Core, 3P4W
Supporting Information
- Measures kWh and peak demand (optional)|Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers|Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor|Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR|Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset|Load indicator LED verifies meter functionality|Reverse phase indicator LED illuminates if the meter is improperly installed|48 in L maximum current transformer lead|18 to 14 AWG terminal accommodation|Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- 18 to 14 AWG terminal accommodation
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
- Brand: LevitonAmperage Rating: 200Dimensions: 8.47 in L x 5.72 in W x 3.57 in HDisplay Type: LCDEnclosure Type: NEMA 4X
